SQL Plan Baseline Base Tables ERD

SQL PLAN BASELINE 조회:

SQL> SELECT ORIGIN, SQL_HANDLE, PLAN_NAME, ENABLED, ACCEPTED, FIXED, OPTIMIZER_COST AS COST,
LAST_MODIFIED, LAST_EXECUTED, LAST_VERIFIED, SQL_TEXT
FROM DBA_SQL_PLAN_BASELINE
WHERE SQL_TEXT LIKE '%spb_test%';
SQL_HANDLE	            PLAN_NAME	                    ENABLED	ACCEPTED	FIXED	COST
--------------------    ------------------------------  ------- --------    -----   -----
SQL_003bafd463fcafe0	SQL_PLAN_00fxgujjztbz048466ae1	YES	    YES	        NO	     2773
SQL_003bafd463fcafe0	SQL_PLAN_00fxgujjztbz06eaec216	YES	    NO	        NO	    17200
SQL_003bafd463fcafe0	SQL_PLAN_00fxgujjztbz0a4a57122	YES	    NO	        NO	    19077
SQL_003bafd463fcafe0	SQL_PLAN_00fxgujjztbz0d86e322e	YES	    NO	        NO	    21278
SQL_003bafd463fcafe0	SQL_PLAN_00fxgujjztbz0d9a7756b	YES	    NO	        NO	    21239

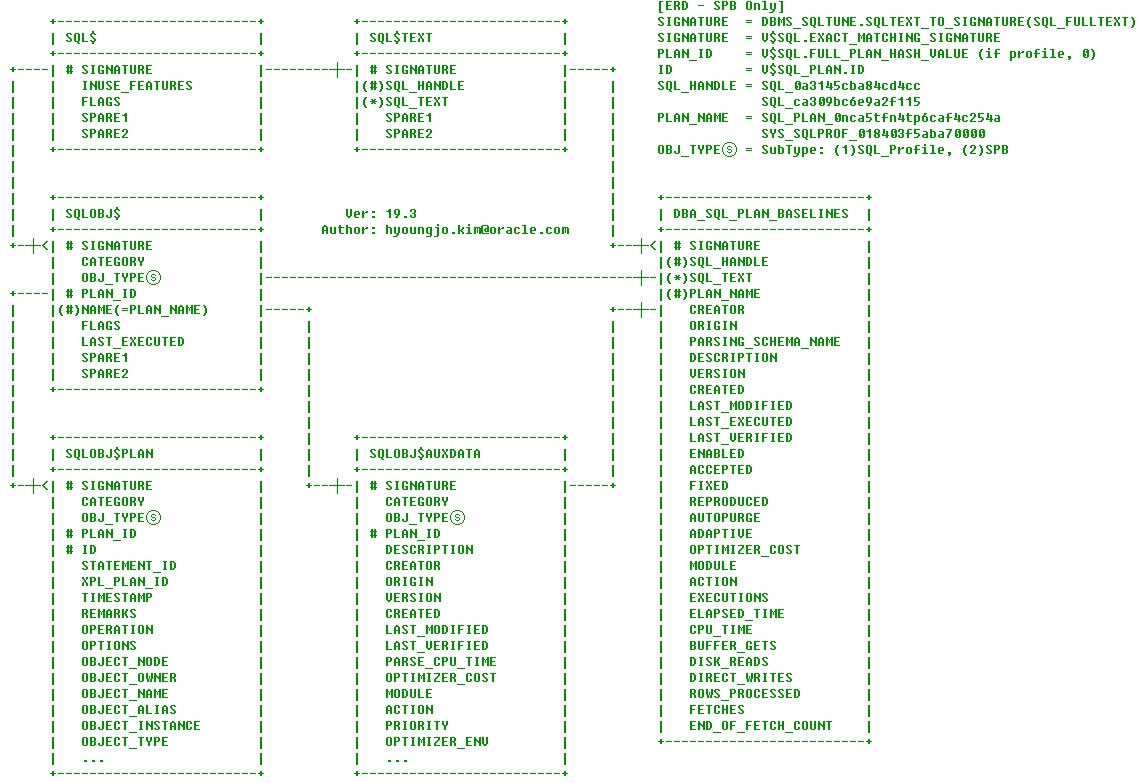

SQL PLAN BASELINE 관련 주요 Base Table에 대한 ERD:

SQL Plan Baseline Base Tables - ERD
